1. Prove feasibility by adapting DIAMOND to a different game.
2. Generalize the workflow for training similar models on other games.

1. No Existing Dataset : I couldn’t find datasets for SM64, and creating one manually was daunting.
2. High Data Requirements : Even with my best efforts, collecting a comprehensive dataset covering SM64’s vast and varied levels would have taken weeks of manual gameplay.
3. Complex Gameplay : SM64’s range of movements (e.g., jumping, complex camera controls) made it harder to generalize.

1. Frame Keys : Each key represents a frame and follows this pattern:
   frame_<N>_x (image data) and frame_<N>_y (input data), where N is the frame number (0-999 per file).
2. Image Data ( _x ):
   Each frame is stored as a 3D array with dimensions (240 x 320 x 3) :
   • 240 x 320 : Height and width.
   • 3 : RGB color channels.
     (Note: Height and width often swap during tensor conversion—an issue you’ll need to debug when preprocessing.)
3. Input Data ( _y ):
   A vector representing the player’s actions for that frame:
   • The vector’s size equals the number of input actions (e.g., 4 for WASD controls).
   • Example for WASD: [1, 0, 0, 1] means W and D are pressed simultaneously.


# Input action example: WASD controls
# No keys pressed:
action_vector = [0, 0, 0, 0]

# Pressing W and D together:
action_vector = [1, 0, 0, 1]


• Time-Intensive : Capturing even a small portion of the game’s map took hours of manual effort.
• Insufficient Data : Initial tests with just a few minutes of gameplay led to poor results.

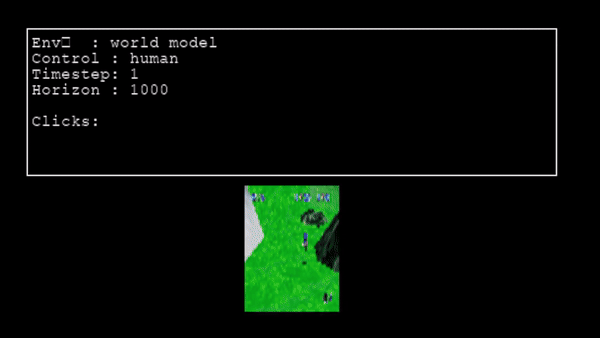

  (Check out the preliminary output: YouTube link ).

1. Easier Dataset Collection : Existing AI models for MK64 could automate gameplay recording, significantly reducing manual effort.
2. Simpler Controls : Limited steering actions (left/right) and no complex camera movements make it ideal for NN training.
3. Low Resolution : The game’s graphics look good even when scaled down.

• -1.0 : Full left steer.
• 1.0 : Full right steer.
• 0.0 : No steering.
• Intermediate values represent partial steering.


def decimal_to_vector(decimal_number):
    # Initialize a list of 20 zeros
    vector = [0] * 20

    # Ensure the decimal_number is within the expected range
    decimal_number = max(-1.0, min(decimal_number, 1.0))

    # Calculate the index based on the input decimal number
    # Map -1.0 to 0, ..., 0.0 to 10, ..., 1.0 to 19
    index = round((decimal_number + 1.0) * 10)

    # Cap the index at 19 to handle the case where decimal_number is exactly 1.0
    index = min(index, 19)

    # Set the appropriate position in the vector to 1
    vector[index] = 1

    return vector


• This splits the steering interval into 20 discrete steps.
• Each vector has exactly one 1 , indicating the corresponding steering range.

• A steering value of -1.0 maps to: [1, 0, 0, ..., 0] .
• A steering value of 0.0 maps to: [0, ..., 1, ..., 0] (center position).
• A steering value of 1.0 maps to: [0, ..., 0, 1] .


def capture_frame(prediction, img):
    global t
    global file_index
    global h5file

    # Create a new HDF5 file after 1000 frames
    if t > 999 or h5file is None:
        file_index += 1
        if h5file is not None:
            h5file.close()
        h5file_name = file_prefix + "_" + str(file_index) + ".hdf5"
        h5file = h5py.File(f"D:\\MK64AI_dataset\\{output_dir}/{h5file_name}", 'w')
        t = 0
        print("Saving HDF5 file and creating the next...")

    # Convert the image from BGRA to BGR (OpenCV format)
    img = cv2.cvtColor(img, cv2.COLOR_BGRA2BGR)
    img = cv2.resize(img, (target_width, target_height))

    # Convert the prediction (decimal) to a one-hot vector
    vector = decimal_to_vector(prediction)

    # Save frame data to the HDF5 file
    h5file.create_dataset(f"frame_{t}_x", data=img)
    h5file.create_dataset(f"frame_{t}_y", data=vector)

    t += 1
    return True

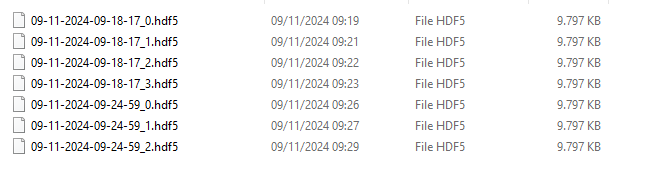

• HDF5 File Management : Automatically creates new files after 1000 frames to keep datasets manageable.
• Image Processing : Converts gameplay frames to the required format (removing the alpha channel and resizing).
• Data Storage : Saves both image data ( X ) and steering input vectors ( Y ) for each frame.

1. Noised Data :
   Introduced randomness to the steering values produced by NeuralKart, simulating a range of driving behaviors. For example, the AI might randomly steer slightly left when it would normally go straight.
   • Purpose: Teach the model to generalize better and handle edge cases.
2. Expert Data :
   Used only high-quality inputs from NeuralKart (without noise).
   • Purpose: Provide a baseline of “ideal” steering for the network to emulate.

• No U-Turns : Since the dataset lacked examples of full 180° turns, the trained NN could only make small corrections instead of completely reversing direction.
• Wall Collisions : Crashes into walls were rare in the dataset. When the NN encountered such a scenario, it struggled to simulate an impact and instead attempted to continue generating the track ahead.

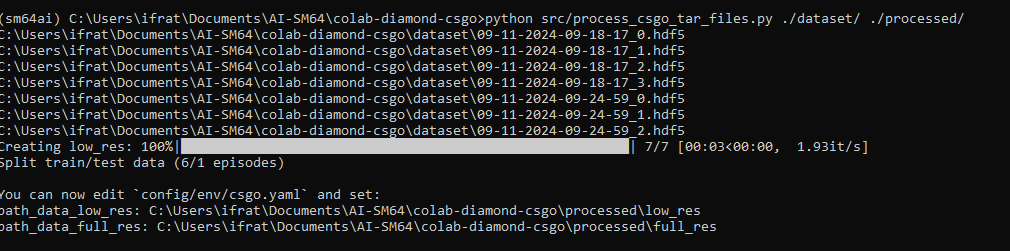

1. Update Data Paths :
   • Modify the script to read HDF5 files from the MK64AI_dataset directory.
   • Ensure it processes image data ( X ) and corresponding steering vectors ( Y ).
2. Resolution Scaling :
   • Ensure that data preprocessing maintains consistency between low-resolution (64x48) and full-resolution (320x240) inputs.
3. Output Directory :
   • Update paths to save processed datasets in the correct locations.

1. config/agent/csgo.yaml :
   • Upsampling Factor :
     • For 320x240 full-resolution and 64x48 low-resolution data, the upsampling factor remained 5 ( 320/64 = 5 ).
     • If resolutions differ, calculate the factor accordingly.
   • Example:


     upsampling_factor: 5



2. config/env/csgo.yaml :
   • Input Resolution :
     • Update the size field to [320, 240] for full resolution.
     • Ensure the order matches the input data ( width x height ).
   • Number of Actions :
     • Set num_actions to 20 , reflecting the length of the steering vector.
   • Data Paths :
     • Update path_data_low_res and path_data_full_res to point to the preprocessed datasets.
3. config/trainer.yaml :
   • Adjust training parameters for both the denoiser and upsampler :
     • Reduce steps_per_epoch and increase flexibility for testing different configurations.
     • Example (Denoiser):


       denoiser:
         training:
           num_autoregressive_steps: 4
           start_after_epochs: 0
           steps_first_epoch: 100
           steps_per_epoch: 100



     • Example (Upsampler):


       upsampler:
         training:
           num_autoregressive_steps: 1
           start_after_epochs: 0
           steps_first_epoch: 400
           steps_per_epoch: 400




pip3 install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu118


1. Denoiser :
   • Resolution : 64x48 (low resolution).
   • Optimal Batch Size : 28 on a 40GB GPU.
   • Gradient Accumulation Steps : 6 .
     • This value is multiplied by the steps per epoch to calculate the total steps in an epoch.
   • Rationale :
     • The denoiser processes data at a smaller resolution, allowing for a relatively larger batch size.
     • If you were to decrease the batch size you should increase the Gradient Accumulation steps.
2. Upsampler :
   • Resolution : 320x240 (full resolution).
   • Optimal Batch Size : 4 .
   • Gradient Accumulation Steps : 1 .
     • The effective batch size remains ( 4 ), reflecting the upsampler’s limited GPU memory headroom.
   • Rationale :
     • The full-resolution data significantly increases memory requirements.
     • A much smaller batch size, reduced by the upsampling factor (~5x the data size), ensures stability during training.

1. Denoiser :
   • Steps Per Epoch : 100 .
   • Epochs : Configured for 6 epochs (( 6 \times 100 = 600 ) steps in total).
   • Initial Steps for First Epoch : Set to match regular steps (( 100 )).
   • Reasoning :
     • The smaller step count per epoch allows for flexibility in testing configurations and monitoring performance over shorter intervals.
2. Upsampler :
   • Steps Per Epoch : 400 .
   • Epochs : Fewer epochs to prevent too long training time.

• Reserve Headroom :
  • Avoided completely maxing out VRAM during the first epoch.
  • Allowed for memory spikes in later epochs.
• Trial and Error :
  • Experimented with batch sizes and gradient accumulation steps until achieving stability.

• Denoiser :
  • Gradient Accumulation Steps: 6
  • Batch Size: 28
  • Steps Per Epoch: 100
  • Total Steps: 600
• Upsampler :
  • Gradient Accumulation Steps: 1
  • Batch Size: 4
  • Steps Per Epoch: 400
  • Total Steps: 400

• First Epoch : Typically uses less memory than subsequent epochs, so adjustments were made to avoid crashes in later epochs.
• Training Time : On a Google Colab A100 GPU, training took approximately 10 hours and cost around $10 .

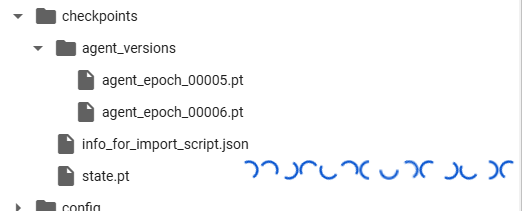

• checkpoints/state.pt : Contains all training parameters (4GB, not needed for inference).
• agent_versions/<checkpoint>.pt : Smaller checkpoint file (~1.42GB) used for inference.

• low_res : Tensor for low-resolution frames, shape (4, 3, 48, 64)
• full_res : Tensor for full-resolution frames, shape (4, 3, 240, 320)
• act : Tensor for initial action vectors, shape (4, 20)
• next_act : Tensor for the next 200 actions, shape (200, 20)

1. Randomly Select Frames: The starting frame is randomly chosen from the range [0, 799] , ensuring space for the next 200 frames. For each of the first four frames:
   • Extract the image and action data ( X and Y ) from the HDF5 file.
   • Generate the low-resolution version of the image by resizing it using bicubic interpolation.
   • Save both the full-res and low-res images.
   Code example:


   i = random.randint(0, 799)
   for j in range(4):
       frame_x = f'frame_{i}_x'
       frame_y = f'frame_{i}_y'

       if frame_x in h5file and frame_y in h5file:
           # Append the frames
           data_x = h5file[frame_x][:]
           data_y = h5file[frame_y][:]

           data_x_frames.append(data_x)
           data_y_frames.append(data_y)

           # Save full-res image
           image = Image.fromarray(data_x)
           image.save(spawn_dir / f"{existing_spawns}/full_res_{j}.png")
           resized_image = T.resize(image, (low_res_h, low_res_w), interpolation=T.InterpolationMode.BICUBIC)
           low_res_frames.append(np.array(resized_image))
       else:
           print(f"One or both of {frame_x} or {frame_y} do not exist in the file.")
       i += 1



2. Extract the Next 200 Actions: After selecting the first four frames, iterate through the next 200 frames to save only the action vectors ( Y data).
   Code example:


   for _ in range(200):
       next_act = f'frame_{i}_y'
       if next_act in h5file:
           next_act_data = h5file[next_act][:]
           next_act_frames.append(next_act_data)



3. Stack and Save the Tensors: After extracting all data, stack the tensors for full-res, low-res frames, and actions. Rearrange the dimensions of the images to match the required format: (FRAME_N, COLOR_CHANNEL, H, W) .
   Code example:


   data_x_stacked = np.stack(data_x_frames)
   data_y_stacked = np.stack(data_y_frames)
   next_act_stacked = np.stack(next_act_frames)
   low_res_stacked = np.stack(low_res_frames)

   low_res_stacked = np.transpose(low_res_stacked, (0, 3, 1, 2))
   data_x_stacked = np.transpose(data_x_stacked, (0, 3, 1, 2))

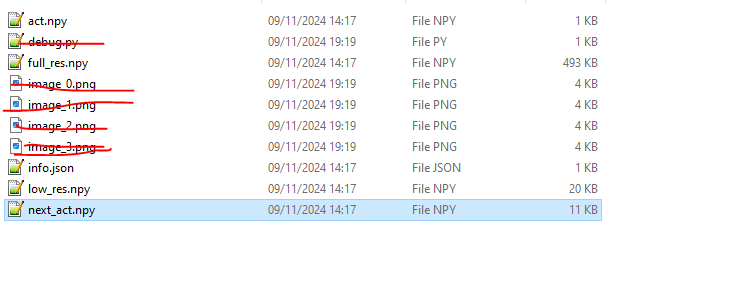

4. Save the Spawns: The spawn.py script also saves images of the full-resolution frames so you can preview the spawns. This is helpful for selecting interesting starting points. Spawns are saved in the ./training/csgo/spawn folder, which you need to create manually.

• Generate around 10 spawns and manually inspect them to select the most interesting ones. Delete the less useful spawns to keep your setup clean.
• Check the HuggingFace model structure ( here ) for guidance on where to place the csgo.pt model (your trained model, renamed accordingly) and how to organize the spawn folder.

• Update the path_data values in the spawn configuration files to point to your dataset.
• Match the upsampling_factor and resolution settings in the appropriate YAML files.

• ./src/csgo/keymap.py
  This file defines a keymap , which maps each key (as a pygame enum) to a name. This is used to display key presses on the pygame interface. For example, you might map the W key to “forward” or A to “left.”
• ./src/csgo/action_processing.py
  This file is critical for converting user inputs into the vectors your neural network understands and vice versa. It bridges the gap between raw inputs (like key presses) and action vectors.

1. N_KEYS Definition
   At the start of the file, update:


   N_KEYS = 20  # Update this to the size of your action vector



   Replace 20 with the number of elements in your action vector.
2. Decimal to Vector and Vector to Decimal Functions
   These functions map a floating-point value (e.g., steering input) to a one-hot vector and back. Here’s a closer look:
   • decimal_to_vector : Converts a decimal value (e.g., -1.0 to 1.0 for steering) into a one-hot vector of size N_KEYS .


     def decimal_to_vector(decimal_number):
         vector = [0] * N_KEYS
         decimal_number = max(-1.0, min(decimal_number, 1.0))
         index = round((decimal_number + 1.0) * 10)  # Map -1.0 to 0, 1.0 to 19
         index = min(index, N_KEYS - 1)  # Ensure index doesn't exceed bounds
         vector[index] = 1
         return vector



   • vector_to_decimal : Converts a one-hot vector back to a decimal value.


     def vector_to_decimal(vector):
         if len(vector) != N_KEYS:
             raise ValueError("Input vector must be of length N_KEYS.")
         index = vector.index(1)  # Find which element is "hot"
         return (index / 10) - 1.0



3. Encoding and Decoding Actions
   These functions translate between high-level CSGOAction objects and the action vectors used by the neural network.
   • encode_csgo_action
     Converts user inputs into a vector. This function encodes keys, and if applicable, mouse movements. For a simplified setup without mouse inputs:


     def encode_csgo_action(csgo_action: CSGOAction, device: torch.device) -> torch.Tensor:
         keys_pressed_onehot = np.zeros(N_KEYS)
         keys_pressed_onehot[decimal_to_vector(csgo_action.steering_value)] = 1
         return torch.tensor(keys_pressed_onehot, device=device, dtype=torch.float32)



   • decode_csgo_action
     Decodes the neural network’s vector output into a CSGOAction object for processing:


     def decode_csgo_action(y_preds: torch.Tensor) -> CSGOAction:
         y_preds = y_preds.squeeze()
         keys_pred = y_preds[:N_KEYS]
         return CSGOAction(vector_to_decimal(keys_pred))



4. Mapping Specific Key Inputs
   In the original DIAMOND setup, mouse movements and clicks are included. For a keyboard-only game like Mario Kart, you can simplify this. Replace the mouse and click handling code with logic tailored to your game’s control scheme.


@dataclass
class CSGOAction:
    keys: List[int]  # Replace with keys alone



def encode_csgo_action(csgo_action: CSGOAction, device: torch.device) -> torch.Tensor:
    keys_pressed_onehot = np.zeros(N_KEYS)
    for key in csgo_action.keys:
        if key == "w":
            keys_pressed_onehot[0] = 1
        elif key == "a":
            keys_pressed_onehot[1] = 1
        # Map remaining keys to corresponding vector indices
    return torch.tensor(keys_pressed_onehot, device=device, dtype=torch.float32)


1. Adjust Input Mapping to Match Your Game
   Map each key to a specific index in your action vector. For example:
   • W → Forward movement
   • A → Turn left
   • D → Turn right
     Ensure the mapping aligns with how your neural network was trained.
2. Test and Iterate
   The vector encoding must precisely match what your model expects. Errors here will result in incorrect behavior.
3. Handle Forbidden Movements
   If certain combinations (e.g., moving in two opposite directions) are invalid, ensure your decoding process filters these.

1. World Model Environment ( ./src/envs/world_model_env.py )
   • reset() Function :
     This initializes the environment by calling self.generator_init.send() , which determines a new spawn point. It sets the high-resolution and low-resolution images (stored in obs and act variables) for processing.
     HX and CX (used for reinforcement learning) can be ignored here, as they are not relevant in this version of the code.
   • step() Function :
     This function calculates the next observation, upsamples it, and interacts with the neural network. It serves as the interface between the environment and the CSGOAction .
2. Game Environment ( ./src/game/playenv.py )
   • This file interacts with world_model_env.py , calling its reset() and step() functions to process game logic.
3. Key Event Handling ( ./src/game/game.py )
   • This is where pygame captures player inputs. In the run() function:
     • pygame.KEYDOWN adds pressed keys to the keys_pressed list.
     • pygame.KEYUP removes released keys from the keys_pressed list.
   • These key events directly influence the creation of the CSGOAction object.


   if event.type == pygame.KEYDOWN:
       keys_pressed.append(event.key)

   elif event.type == pygame.KEYUP and event.key in keys_pressed:
       keys_pressed.remove(event.key)



   The list of keys pressed ( keys_pressed ) is passed to the CSGOAction constructor. If your CSGOAction is modified (e.g., no mouse handling), you need to remove mouse-related parameters from its initialization.


csgo_action = CSGOAction(keys_pressed, mouse_x, mouse_y, l_click, r_click)



csgo_action = CSGOAction(keys_pressed)



@dataclass
class CSGOAction:
    keys: List[int]



def get_steering_value(keys_pressed):
    if pygame.K_1 in keys_pressed:
        return -1.0
    elif pygame.K_2 in keys_pressed:
        return -0.8
    elif pygame.K_3 in keys_pressed:
        return -0.6
    elif pygame.K_4 in keys_pressed:
        return -0.4
    elif pygame.K_5 in keys_pressed:
        return -0.2
    elif pygame.K_6 in keys_pressed:
        return 0.0
    elif pygame.K_7 in keys_pressed:
        return 0.2
    elif pygame.K_8 in keys_pressed:
        return 0.4
    elif pygame.K_9 in keys_pressed:
        return 0.6
    elif pygame.K_0 in keys_pressed:
        return 0.8
    else:
        return None  # No relevant key pressed



k = get_steering_value(keys_pressed)
if k is not None:
    steering_value = k
csgo_action = CSGOAction(steering_value)
next_obs, rew, end, trunc, info = self.env.step(csgo_action)



path_hf = Path(snapshot_download(repo_id="eloialonso/diamond", allow_patterns="csgo/*"))



path_hf = Path("./trained/")


• The game folder ( CSGO or your equivalent).
• The model and spawns.

1. Carefully read the stack trace to identify where the inconsistency lies.
2. Check if modifications to CSGOAction propagate correctly through all references.
3. Test individual components, such as the get_steering_value function, to ensure they behave as intended.

• A high-end GPU (e.g., 3090) is needed for decent FPS (around 10 FPS).
• Lower-spec systems might experience significant lag (e.g., 0.2 FPS on a 4GB VRAM GPU).

• Join the DIAMOND Discord and explore the #training-support channel.
• Document your debugging process, as this can aid others with similar challenges.
